DAAB MK2 ES
DAAB MK2 ES
Model Variant | Part Number | Application | Operator Type | Max Cycles Per Hour | Power Supply | Leaf Length (Minimum - Maximum) | Gate Obstacle Detection |
---|---|---|---|---|---|---|---|
DAAB | MK2 ES | Industrial | Electro mechanical | Continuous | 230V | 2.70 - 6.00 | Encoder |
- Maximum weight per leaf is 500 kg at 6m

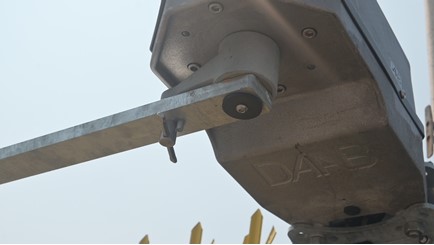

- Double worm gear box - optimal for applications in windy locations.
- Self-locking keeps the gate leaf in position even if the power is broken.
- Manages temperatures down to -45°
- Plastic cover and silumin alloy base. The cover is also available in stainless steel, at additional cost
- Electrical Motor 3-phase as standard. 1-phase is optional
In 2007 DAAB became part of the FAAC Group. DAAB creates versatile systems with unique technology that has an emphasis on heavier applications with a large focus on 3 phase technology and inhouse developed transmissions.

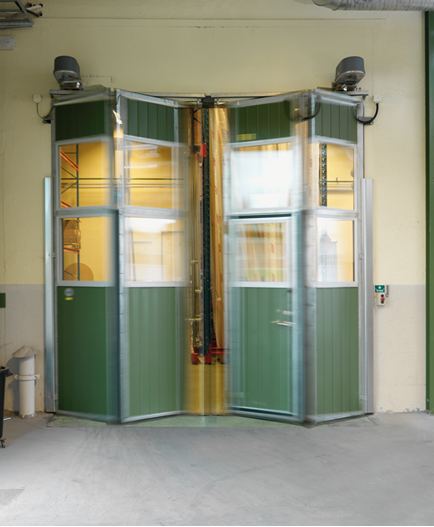

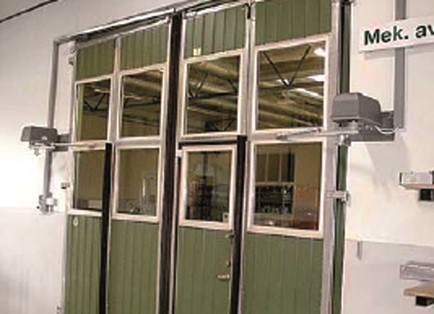

The same drive units are used for both automating gates, doors and barriers with different bracketry making them suitable for all types of installation. Using an inverter also enables the use of single phase power supply with the power of 3 phase.
The results are that the products have a long service life.
As a general rule, DAAB is offered for large gates where our range of Hydraulic Operators such as the 400 range is not suitable or in the case of the 400 SBS Long, if it is too slow.
• If there is High Intensive and Continous Use is expected.
• Areas heavily effected by wind or if the gates are fully clad or infilled with Palisade fencing.

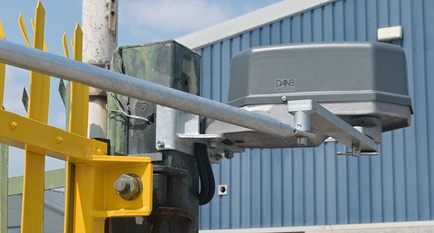

• If the gates are mounted off large pillars and it is not possible to reach with a standard operator or with a Articulated Arm such as the 390/392 Operators.
• When Opening and Closing speeds are critical such as Rapid Response Vehicle Gates or security gates for Police Stations, Prisons, Embassies, etc

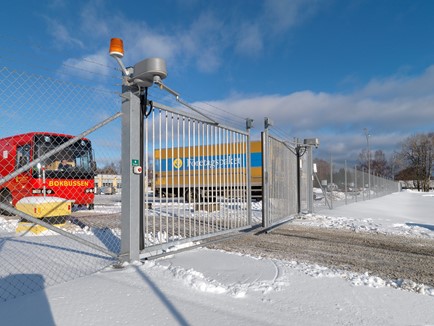

For Single leaf swing gates with leaves up to 6m.
