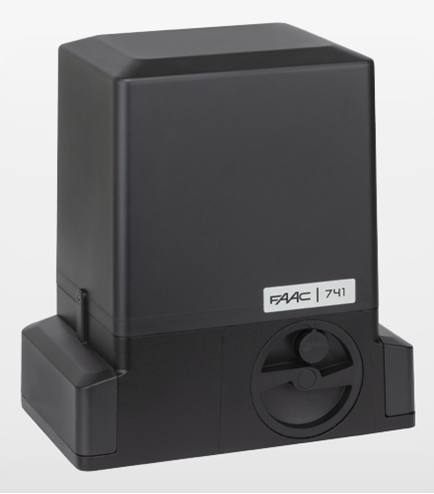

741C Sliding Gate Operator
741C Sliding Gate Operator
| Model Variant | Part Number | Application | Use Frequency | Limit Switch Type | Power Supply | Maximum Leaf Weight | Gate Obstacle Detection |
|---|---|---|---|---|---|---|---|
| 741 C sliding Gate Operator | 109602 | Light commercial Residential | 56.00% | Inductive | 230V | 900 | Encoder |
Key features
- Fitted with the new E781S LC control board instead of the older 740D board. The benefits of the new control board:
- Use frequency greatly increased from 22 cycles/hr (740) & 30 cycles/hr (741) to 56 cycles/hr for both 740C & 741C. Thanks to the new encoder and power monitoring system, similar to the 844C.
- Lower consumption capability.
- It can use FDS remotes with the XF FDS Simply connect and BUS 2 Easy terminal
- Separate open and closing safety edge inputs, either normally closed or resistive contacts.
- Two programmable outputs and two 8k2 inputs - direct connection for safety edges.
- Hold to run function if an accessory fails
Product details
The next generation of our popular 740 and 741 sliding gate operators has arrived. Developed with the latest control technology, these updated models offer smoother operation, greater efficiency and lower running costs, all while maintaining the proven reliability that has made them industry favourites.
The updated control system brings several key improvements:
- Smoother acceleration and deceleration for more fluid gate movement and reduced wear on mechanical components.
- Maximum torque maintained during deceleration, helping to deliver consistent performance throughout every operating cycle.
- Automatic force adjustment, allowing the system to intelligently adapt to operating conditions for optimum performance and safety.
- The result is a smarter, more efficient operator that combines the proven reliability of the 740 and 741 with enhanced control, improved efficiency and an even better user experience.
