FAAC Sliding Gate Operator / Opener Range

FAAC has a wide range of automatic electric sliding gate operators and openers for residential, commercial and industrial applications. With a sliding gate weight across the range from 400kg to 3,500kg we have a solution for every gate automation application and project, residential light duty to heavy duty industrial. We have a range of low voltage gate operators for residential installations up to 3-phase operators for commercial projects. Our sliding gate openers and sliding gate accessories can be ordered via our online portal. Along with a national network of registered sliding gates operator installers, we have the ideal solution for your needs.

Sliding Gate Operator Product Range Highlights

C720 24V SLIDING GATE OPERATOR
Duty: Residential
Power Consumption: 170W
Max Gate Weight: 400kgs
Max Speed: 18 m/min
Special Features: Virtual encoder. Compatible with BUS accessories. Master/Slave operation available via BUS

C721 24V SLIDING GATE OPERATOR
Duty: Residential / Light Commercial
Power Consumption: 290W
Max Gate Weight: 800kgs
Max Speed: 18 m/min
Special Features: Virtual encoder. Compatible with BUS accessories. Master/Slave operation available via BUS

740 230V SLIDING GATE OPERATOR
Duty: Residential
Power Consumption: 350W
Max Gate Weight: 500kg
Max Speed: 12 m/min
Special Features: Quick and easy installation thanks to the built in prewired control unit. As the gearmotor is non reversing, no electric locks need to be installed.

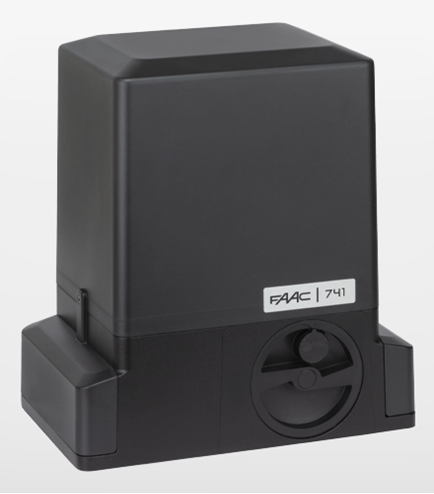

741 230V SLIDING GATE OPERATOR
Duty: Residential
Power Consumption: 500W
Max Gate Weight: 900kg
Max Speed: 12 m/min
Special Features: Quick and easy installation thanks to the built in prewired control unit. As the gearmotor is non reversing, no electric locks need to be installed.

746 ER 230V SLIDING GATE OPERATOR
Duty: Residential/Light Commercial/Industrial
Power Consumption: 300W
Max Gate Weight: 600
Max Speed: 9.6 m/min
Special Features: Designed for height and side adjustable fastening. As the gearmotor is non reversing, no electric locks need to be installed.

844 ER 230V SLIDING GATE OPERATOR
Duty: Light Commercial/Industrial
Power Consumption: 650W
Max Gate Weight: 1,800 kg
Max Speed: 9.5 m/min
Special Features: In the event of a power cut, the key-operated release device makes it possible to open and close the gate manually. As the gearmotor is non reversing, no electric locks need to be installed

844 3-PHASE SLIDING GATE OPERATOR
Duty: Industrial
Power Consumption: 950W
Max Gate Weight: 1,600kg (Z16) / 2,200kg (Z12)
Max Speed: 9.5 m/min (Z16) / 7.2 m/min (Z12)
Special considerations: Control board requires CAT3 safety edges to be used.
Special Features: Twin-disk clutch in oil-bath (anti-crushing safety). As the gearmotor is non reversing, no electric locks need to be installed.

884 3-PHASE SLIDING GATE OPERATOR
Duty: Industrial
Power Supply: 400 V 3phase
Power Consumption: 850W
Max Gate Weight: 3,500 kg
Max Speed: 10 m/min
Special Considerations: Control board requires CAT3 safety edges to be used. Uses Mod 6 racking
Special Features: Ideal for large industrial gates with intensive use. Self breaking motor guarantees reduced stop spaces and keeps the system mechanically locked when the motor is not in operation.

For details and full product specifications of our full gate opener range - see below or use our features selector on the left. If you are an installer, automatic opening kit for your sliding gate project can be ordered online via our online portal.
