E145S LC Control Board
E145S LC Control Board
| Model Variant | Part Number |
|---|---|
| E145S LC | 790306 |

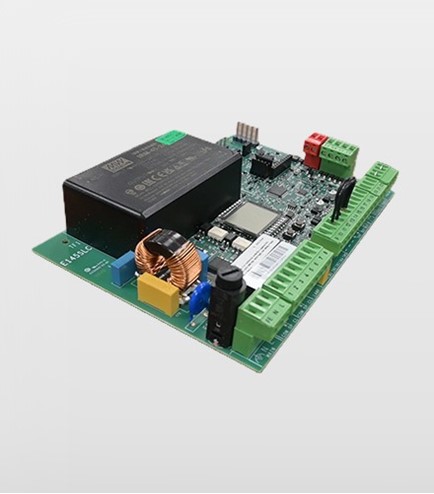

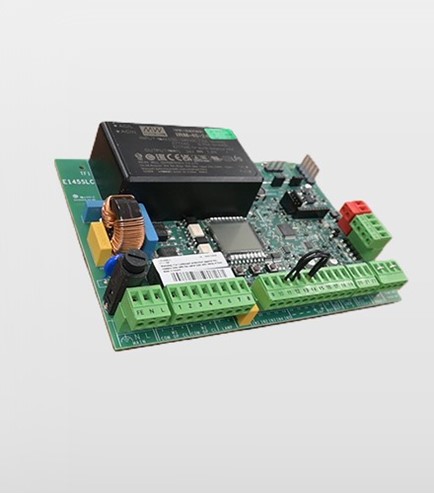

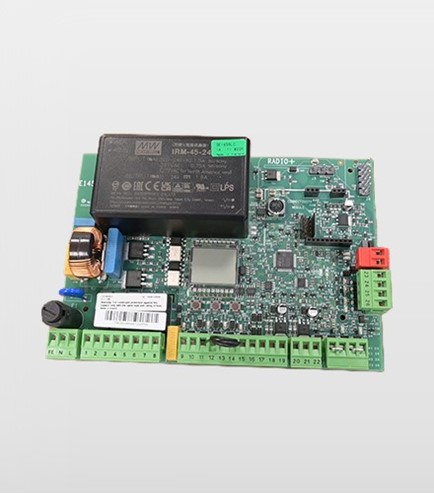

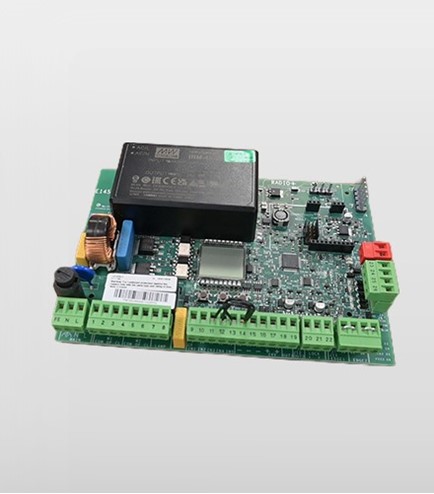

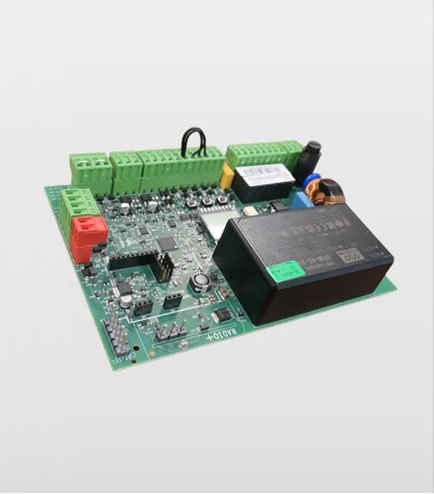

The new E145S LC electronic control board for 230v systems (Part No. 790306), is now available. This board will replace the current E145S board and can utilise both XTO and FDS remotes (with compatible receiver).
The E145S LC continues to have the plug in connector for connectivity modules, which will allow the programming of the board through Simply Connect. The USB A connector has been removed which means advanced programming is done through Simply Connect. This control board meets low consumption compliance when using LC BUS devices.
Standby with the new LC board is 0.5w (2w with Simply Connect).
Comparison between the current E145S Board and the E145S LC
| E145S | E145S LC |
|---|---|
| USB A Only | No USB for advanced programming, only Simply Connect |
| Max. accessories supply: 500ma | Max. accessories supply: 500ma |
| BUS accessories supply: 500ma | BUS accessories supply: 250ma |
| Standby consumption: 4w | Standby consumption (LC): < 0.5w |
The E145S LC features 2 direct inputs for safety edges (opening and closing), up to 4 x 8.2 Kohm edges can be wired to each input.
