AS3000
AS3000
| Power supply voltage | 100-240V ~ 50Hz/60Hz |
| Torque | 1.5Nm |
| Max Absorbed Power (W) | AS3010 - 100W, AS3020 - 150W, AS3030 - 300W |
| Ambient operating temperature | -20oC - +55oC |
| Automation Protection Rating | IP23 (internal use) |
| Type of electric motor | Brushless DC |
| Sound pressure (lPA) | <70 Db (A) |
| Max accessories load (including DPE3) | 1A, 24V |
| Time/date backup battery | Lithium CR2032 3V |
| Motion Backup Battery | NiMh 24V 1800mAh |
| Model Variant | Part Number | Door Type | Arm Type | Leaf Type | Maximum Leaf Weight | Free Passage |
|---|---|---|---|---|---|---|
| For single or double doors, supporting up to 120 kg per leaf; | AS3010 | Sliding | Sliding arm | Single parting Bi parting | 120 | 1m |
| With capacity up to 200 kg per leaf | AS3020 | Sliding | Sliding arm | Single parting Bi parting | 200 | 1m |
| For heavier loads up to 300 kg per leaf | AS3030 | Sliding | Sliding arm | Single parting Bi parting | 300 | 1m |
| Telescopic versions for 2 or 4 leaves, ideal for wider openings. | AS3020T and AS3030T | Sliding | Sliding arm | Single telescopic Double telescopic | 100 | 1m |

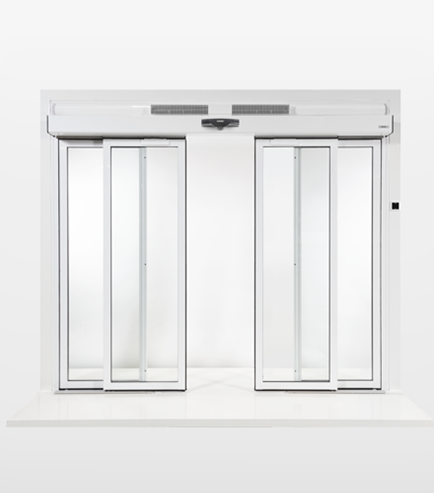

FAAC has expanded its offering in the automatic sliding door sector with the new AS3000 Series, designed to deliver high performance, versatility, and ease of installation and maintenance.
The FAAC AS3000 range represents a significant step forward in sliding door automation, offering solutions suitable for every type of project - from simple single doors to complex telescopic systems. Thanks to modularity and various purchasing options, installers and designers can choose the best fit for their needs, ensuring quality, reliability, and innovation.
Product range
AS3010 leaf weight up to 120 Kg - 120/100 +100kg
AS3020 leaf weight up to 200 Kg - 200/150+150kg
AS3030 leaf weight up to 300 Kg - 300/200+200kg
Available also in Telescopic version and Redundant with TÜV Certification for escape routes.
Escape route safety
Compliance with the European Standard EN16005 for use on escape routes and the European Standard EN13849 PI.D Cat.2 (Redundance of the automation).
Low power consumption
In standby mode, energy consumption is reduced to a maximum of 0.5W, in compliance with EU Directive 2009/125/EC and EU Regulation 2023/826.
EPD verified
The Environmental Product Declaration (EPD) is an internationally recognized document that transparently, objectively and comparably details a product's environmental impact, considering its entire life cycle.
AIRSLIDE System (FAAC patent)
Which integrates an automatic sliding door with a built-in air curtain, combining sleek design with energy efficiency. It reduces energy dispersion, enhances air quality by limiting external pollutants, and ensures optimal comfort by minimizing drafts.
