FAAC

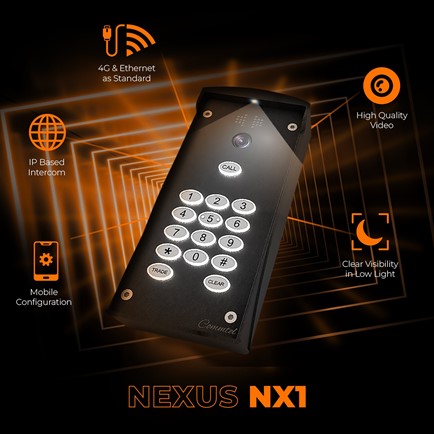

Nexus NX1

Smart, future ready entry

Nexus NX1

Technical specification
User Capacity

500

Call Points

1

Call Diverts

6

Dial to Open

Via SIP where activated.

Connectivity

Network Options: Ethernet and 4G. SIM Requirements: Data-only SIM*.

*SIM – Data SIM supplied. Optional and subject to activation order.

Worldwide Time Clock

The on board time clock enables custom profile functions to be activated. 20x time periods with automatic public holiday recognition. Timed latch & trade button.

Keypad

Vandal resistant with RGBW colour control. Adjustable illumination levels.

Warranty

2 year manufacturer’s warranty.

Apps

Commtel NEXUS – End User App. Commtel CONFIG – Installer App.

Programming

Remotely programmable via the Commtel CONFIG or Commtel NEXUS App.

Video Feed

Video feed viewable only to authorised Commtel NEXUS App users.

Camera

Built-in camera activates during a call. Resolution: 1280 x 960 @ 30fps.

Low-Light Performance: Ultra-clear visibility (Requires a form of ambient light).

Power Supply:

12V DC (compatible with existing Commtel systems).

Relays & Inputs:

1 x 2A – N/O or N/C default. 2 x 200mA – N/O default, programmable (latch, unlatch, toggle, pulse). Auxiliary Inputs: 2 x inputs for external devices (e.g. ground loops, PTE buttons etc.)

SIP Subscription

Dial to Open – Call the intercom from an authorised number to activate the relay and open gates/doors. Phone Call Notifications – Receive standard phone calls from the intercom instead of video calls. SIP is built-in but requires a separate subscription, managed via the Commtel NEXUS App.

Configuration

Standalone. Integration with supplementary TelPad.

Build

Materials: 316 marine grade stainless steel faceplate and moulded aluminium back box, all powder coated black. Dimensions: 216mmH x 99mmW x 40mmD Weight: 1.1kg

Model VariantPart Number
Nexus NK1 IntercomN-GSM E1K Nexus
Product details

From effortless initialisation via smartphone to powerful time-based automation, the NX1 gives users full control while simplifying installation for professionals.

The NX1 is engineered for seamless and secure entry. It combines 4G and Ethernet connectivity, intuitive configuration, and robust security in a sleek, modern unit. Whether installed at a residential gate, commercial access point, or as part of a wider integrated system, the NX1 provides a reliable, high-quality experience from initial setup through to everyday use.

  • Dual Connectivity: 4G & Ethernet as standard – dynamic and adaptable.
  • High-Quality Video: High resolution imaging for reliable video calling.
  • Easy Installation: Initialisation and set up via the Commtel CONFIG app – no need for a laptop.
  • Mobile Configuration: Full system setup and management using the Commtel Config (Installer) and Commtel NEXUS (End User) apps.
  • User-Friendly App: Receive video calls, notifications, and manage access remotely.
  • Customisable Relays: Pulse, latch, unlatch and toggle each relay for flexible installation options.
  • Worldwide Time Clock: 20x programmable time profiles with automatic public holiday recognition.
  • Vandal-Resistant Keypad: With RGBW lighting and adjustable illumination levels.
